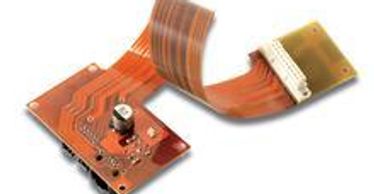

Flex PCB Manufacturing
Today's electronic products in all industries continue to get smaller with demand for enhanced functionality. This leaves no choice for our customers to move into the HDI (High-Density Interconnect) applications using Flex and Rigid-Flex technology. This allows the customer to use thinner materials with smaller geometries while, at the same time, custom fitting to the overall product solution. A few examples of using flexible circuits are in modern wearables, portable electronics, handheld devices, disk drives, and desktop printers. This is also limited to smaller products and more extensive applications because of weight and impedance advantages and improving the loss for high-speed circuits (speeds up to 80 Gig, etc). Tech Driven EMS will help you find a reliable and cost-effective solution whether you are a first-timer or a veteran of flexible printed circuits.
Technology
- Fine Line/Spacing (sub 25 Microns)
- Print and etch with Selective Plate (HDI)
- Multilayer (2-70)
- High Aspect ratio 30:1
- Multilayer Flexible Circuits
- Multiple Laminations
- Thin Core Flex Materials
- Book Binder Flex
- Controlled Impedance (5%)
- Heavy Copper (12oz)
- PTFE RFMW
- Cavity Boards
- Micro Via's
- Laser Drilled Microvia's
- Via-in-Pad (4 mil Drill)
- Solid Copper Filled Vias (18 Mils)
- Stacked MicroVia's (12)
- Blind & Buried Via's (7)
- Anywhere Via Technology
- Castellations
- Heatsinks
- Metal Core
- Custom Cores
- Via anyWhere
- Wrap plating requirements
- Ormit Paste
- Epoxy Fill (conductive & Non-conductive)
- Laser-modified controlled depth drill
- NextGen-SMVTM
- 70 Material types
Benefits
Flex & Rigid-Flex PCBs reduce the number of connectors and improve transmission lines, manufacturing yields, reliability issues, and overall labor costs in assembly. Tech Driven EMS would love to work with you to produce your next Flex or Rigid-Flex circuits.
Design Detail
Very Thin Core Flex
Oversize Flex Cables
Advanced Multilayer Flexible Pcbs
Our experienced manufacturers specialize in Full DFM (design for manufacturability) to help new and professional designers with the latest multilayer Flex and Rigid-Flex technology design rules. Our engineering support and our manufacturer's advanced capabilities will accelerate your product development and reduce product revisions. We will offer the fastest quick-turn and time-to-market production manufacturing available in the industry.
Technology
- OVERSIZE MFG Panel (22" X 34") - 80" Lengths is now possible
- HIGH LAYER COUNT (2-40 Layers)
- High speed & low loss design consulting
- Bookbinder Technology
- Bookbinder Bent Configuration
- Bookbinder Flat Configuration
- Micro Via/Blind Via/ Buried
- Controlled impedance +/- 5
- Constant
- Ultra Thin Cores (.001 mils)
- Shielding Technology (Silver Ink)
- Learn More Flex and Rigid-Flex Types
Advanced Miltilayer Flex & Rigid-Flex
BookBinder Technology for Flex
This Flex technology calls for staggering the length of each flexible layer, eliminating the buckling and significantly reducing the compression/tension forces introduced when multiple flex layers are bent into configuration. The result is a much more flexible and durable end product.
Blind & Buried Vias Technology
Virtually all of today’s advanced rigid PCB manufacturing technologies can be used in rigid-flex designs. Tech Driven has extensive experience fabricating Flex & Rigid-Flex with features such as laser-drilled micro vias, sequential laminations, epoxy fill, copper-filled vias, via-in-pad, and other advanced construction technologies.
Shielding Technology (silver Ink)
Dupont CB028 is a flexible silver-loaded polymer ‘ink’ created explicitly for EMI/RFI shielding on flex applications. Substantial gains in flexibility can be achieved in many cases by replacing the copper shield layers with silver ink. The average thickness of the silver ink layer is approximately one mil.
Constantan
This material can be used instead of copper to form conductors when heat load is a significant consideration. Typical applications for this type of thermal management are focal plane arrays in infrared (IR) imaging equipment. We have also used adhesive constantan laminates for controlled resistance via copper micro-plating.
Key Stiffener Solutions for Cost
Our Engineering team will calculate the appropriate staggers & stretch requirements for final installation of your product..
Flex and Rigid Flex Assembly
Quick-Turn Assembly as fast as 1 to 3 days
Now that we have explained our support and services for low, medium, and highly advanced printed circuit boards for rigid flex and flexible, Let us also support your extremely fast, quick-turn PCB Assembly. We can buy parts and build complete assemblies in as fast as 1 to 3 days.
